18.5. Markov chains#

“Proceeding by guesswork.”

—Plato (attr.), on the meaning of stochastic

Many relevant stochastic processes share the following property: Conditional on their value at step \(n\), the future values do not depend on the previous values. Such processes can be said to have a very short memory and are known as Markov chains. Let us for simplicity in notation focus on discrete processes where the time index takes integer values.

Definition 18.2 (Markov chains)

The stochastic process \(X\) is a Markov chain if it has the Markov property

(18.6)#\[\begin{equation} \prob_{X_n \vert X_0, X_1,\ldots, X_{n-1}}\left( i_n \vert i_0, i_1,\ldots, i_{n-1} \right) = \prob_{X_n \vert X_{n-1}}\left( i_n \vert i_{n-1} \right) \end{equation}\]

for a countable (discrete) sample space. For continuous variables we formulate this property using conditional distribution functions

(18.7)#\[\begin{equation} P_{X_n \vert X_0, X_1, \ldots, X_{n-1}} \left( x_n \vert x_0, x_1, \ldots, x_{n-1} \right) = P_{X_n \vert X_{n-1}} \left( x_n \vert x_{n-1} \right) \end{equation}\]

An alternative, expressive formulation is

Conditional on the present, the future of a Markov chain does not depend on the past.

An observer of a Markov process would only have to measure the one-step conditional probability distributions

(18.8)#\[\begin{equation} \begin{gathered} P_{X_0}(x_0), \\ P_{X_1 \vert X_0}(x_1 | x_0), \\ P_{X_2 \vert X_1}(x_2 | x_1), \\ \vdots\\ P_{X_n \vert X_{n-1}}(x_n | x_{n-1}), \end{gathered} \end{equation}\]

to understand the process.

Stationary processes#

An important subset of Markov processes are stationary which implies that the conditional probability distribution does not depend on the position in time. In combination with the Markov property, this can be viewed as a process with very short-term memory and no sense of time. An observer of a stationary Markov process only needs to measure

(18.9)#\[\begin{equation} \begin{gathered} P_{X_0}(x_0), \\ P_{X_n \vert X_{n-1}}(x_n | x_{n-1}), \end{gathered} \end{equation}\]

for any \(n\), to have a complete description. Here is a more formal definition.

Definition 18.3 (Stationary processes)

Given a countable (discrete) sample space \(S\), the Markov chain \(X\) is stationary if

(18.10)#\[\begin{equation} \prob_{X_{n+1} \vert X_n} \left( j \vert i \right) = \prob_{X_1 \vert X_0} \left( j \vert i \right) \equiv T(i,j) \end{equation}\]

for all \(n,i,j\). Here we have also introduced the (stationary) transition density \(T\), which here becomes an \(|S| \times |S|\) matrix with elements \(T(i,j)\).

For continuous variables we use (conditional) distribution functions and we introduce the continuous transition density

(18.11)#\[\begin{equation} P_{ X_{n+1} \vert X_n} \left( x_j \vert x_i \right) = P_{X_1 \vert X_0} \left( x_j \vert x_i \right) \equiv T\left( x_i, x_j \right). \end{equation}\]

Be aware since the transition density is sometimes denoted \(T(x_j \leftarrow x_i)\) or even \(T_{j,i}\).

Exercise 18.4 (Stochastic matrix)

The transition density \(T\) is a so called stochastic matrix. What properties must it have? (consider the discrete case with matrix elements \(T(i,j)\)).

Exercise 18.5 (Simple random walk)

  • How can you see that the random walk introduced in Example 18.3 is a Markov process?

  • Is it stationary?

  • If so, what are the matrix elements of the transition density?

In the following we will only consider stationary Markov chains and we stress that these are fully defined by \(P_{X_0}(x_0)\) and \(T\left( x_i, x_j \right)\).

Example 18.4 (A simple Markov process)

Let us construct a simpe Markov process using again the abstract python class StochasticProcess).

We initialize the chain with a uniform random variable \(p_{X_0}(x_0) = \mathcal{U}\left( [0,1] \right)\) and update it using the conditional probability density function

(18.12)#\[\begin{equation} p_{ X_{n+1} \vert X_n} \left( x_j \vert x_i \right) = \mathcal{U}\left( \left[ \frac{x_i}{2} ,\frac{x_i+1}{2} \right] \right). \end{equation}\]

The simulations in Fig. 18.2 and Fig. 18.3 includes two relevant visualizations:

  • Plots of the first variables from a few runs.

  • A corner plot of bivariate and univariate marginal distributions.

../../_images/0f5c3fef4ac32233bad4a0893f8870ccc872b07216456a1df0f21f21117e2971.png

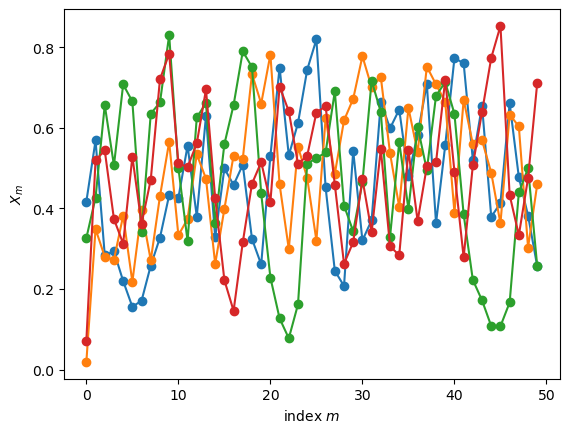

Fig. 18.2 First 50 variables in four realisations of the chain.#

../../_images/a0e1a3053c47b12e0d598d6154568517b2754b5664327cf436497b85e4536336.png

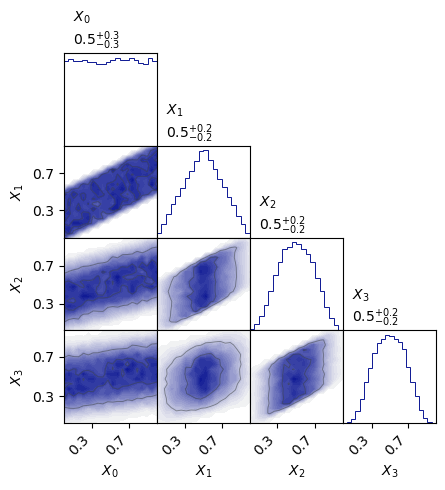

Fig. 18.3 Joint bivariate and univariate probability distributions. The statistics to produce these plots were gathered from 20,000 realisations of the Markov chains.#

import numpy as np
import matplotlib.pyplot as plt
from myst_nb import glue

import sys
import os
# Adding ../../Utils/ to the python module search path
#sys.path.insert(0, os.path.abspath('../../Utils/'))
sys.path.insert(0, os.path.abspath('./CodeLocal/'))

from StochasticProcess.StochasticProcess import StochasticProcess as SP

class MarkovProcessExample(SP):
    def start(self,random_state):
        return random_state.uniform()

    def update(self, random_state, history):
        return 0.5 * ( history[-1] + random_state.uniform() )


# Create an instance of the class. It is possible to provide a seed
# for the random state such that results are reproducible.
example = MarkovProcessExample(seed=1)

# The following method calls produce 4 runs, each of length 50, and plots them.
example.create_multiple_processes(50,4)
fig_runs, ax_runs = example.plot_processes()
glue("MarkovProcessExample_runs_fig", fig_runs, display=False)

Hide code cell output
../../_images/0f5c3fef4ac32233bad4a0893f8870ccc872b07216456a1df0f21f21117e2971.png
# Marginal, joint distrubtions
import prettyplease.prettyplease as pp

# Here we instead create 20,000 runs (to collect statistics), each of length 13.
example.create_multiple_processes(13,40000)
# but we just plot the first four variables
fig_corner = pp.corner(example.sequence[:4,:].T,labels=[fr'$X_{{{i}}}$' for i in range(4)])
glue("MarkovProcessExample_corner_fig", fig_corner, display=False)

Hide code cell output
../../_images/a0e1a3053c47b12e0d598d6154568517b2754b5664327cf436497b85e4536336.png

Stationary and limiting distributions#

We will now explore the long-time evolution of a Markov chain. We will, for simplicity, consider a countable sample space although our final application will be to continuous probability distributions.

First, we note that even the Markov process with its very short memory (dependence on just the previous value) will maintain an imprint of earlier positions. This imprint, however, will be finite. Let us explore the first few steps pf the chain. The conditional probability of being in state \(k\) at position 2 given that we started in position \(i\) at \(t=0\) can be obtained using the product rule (35.3)

(18.13)#\[\begin{split} \cprob{X_{2}=k}{X_{0}=i} &= \sum_j \cprob{X_{2}=k, X_{1}=j}{X_{0}=i} \\ &= \sum_j \cprob{X_{2}=k}{X_{0}=i, X_{1}=j} \cprob{X_{1}=j}{X_{0}=i} \\ &= \sum_j \cprob{X_{2}=k}{X_{1}=j} \cprob{X_{1}=j}{X_{0}=i} , \end{split}\]

where we have employed the Markov property in the last equality. We can now compare this with the probability of being in state \(k\) at position 2 without any condition on the starting position

(18.14)#\[\begin{split} \prob \left( X_{2}=k \right) &= \sum_{i,j} \prob \left( X_{2}=k, X_{1}=j, X_{0}=i \right) \\ &= \sum_{i,j} \cprob{X_{2}=k}{X_{0}=i, X_{1}=j} \prob \left( X_{1}=j, X_{0}=i \right) \\ &= \sum_{j} \cprob{X_{2}=k}{X_{1}=j} \prob \left( X_{1}=j \right), \end{split}\]

where we have again used the product rule and the Markov property. In the final equality we also used the marginalization of the joint probability. The comparison of Eqs. (18.13) and (18.14) reveals that the two probabilites are not equal in general. They would be equal if \(\cprob{X_{1}=j}{X_{0}=i} = \prob \left( X_{1}=j \right)\), which is only fulfilled if the positions are in fact completely independent.

Exercise 18.6 (Remnant memory)

Can you visually verify the remnant memory by identifying the distributions (18.13) and (18.14) in Fig. 18.3 of Example 18.4?

Hint: The conditional distribution is actually not shown in Fig. 18.3 but is easy to obtain using the simple initial distribution and Eq. (35.2).

The remnant memory in the process from Example 18.4 is considered in Exercise 18.6. Conditional distributions \(\pdf{x_m}{x_n}\) (for \(m>n\)) can be produced with the method plot_conditional_distributions() in the StochasticProcess class.

fig_X2givenX0,_,_,_,_ = example.plot_conditional_distributions([1,2],bins=20)
glue("X2givenX0_fig", fig_X2givenX0, display=False)

Hide code cell output
../../_images/6c240708954a745884b82a556bcbdef44b69c0d97e2ef037781b62330478909f.png
../../_images/6c240708954a745884b82a556bcbdef44b69c0d97e2ef037781b62330478909f.png

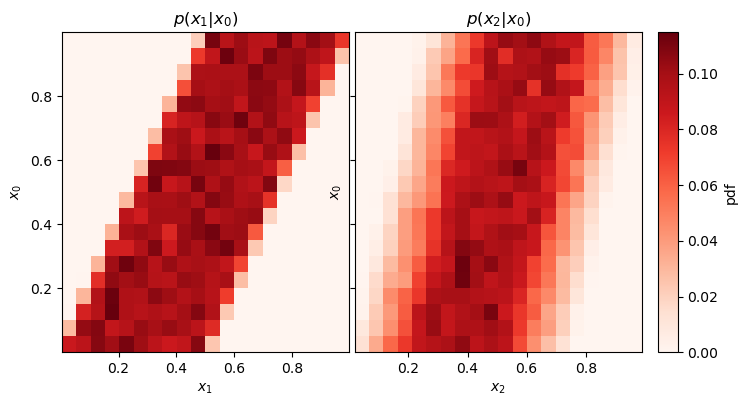

Fig. 18.4 The conditional distributions \(\pdf{x_1}{x_0}\) and \(\pdf{x_2}{x_0}\) for Example 18.4. Note that each of these is a one-dimensional distribution whose shape might depend on the value of \(x_0\). This property is visualized here by histogramming the distributions. Each row corresponds to a bin of \(x_0\) values and represents the corresponding \(\pdf{x_m}{x_0}\) distribution. It is clear from this figure that these distributions are indeed dependent on the value of \(x_0\).#

Exercise 18.7 (Conditional distributions)

Consider Fig. 18.4.

  • The speckling is due to using finite statistics to estimate the probability. How would this plot look different with infinite statistics?

  • This left panel shows \(\pdf{x_1}{x_0}\). Would \(\pdf{x_2}{x_1}\) look any different?

  • Are these conditional probabilities normalized along \(x_0\)? along \(x_{1,2}\) ?

  • How would this plot change if we changed the definition of start() in MarkovProcessExample?

We have shown that there is in fact some memory in a stationary Markov chain. However, it can be shown that a stationary Markov chain (with certain additional properties) will eventually reach an equilibrium where the distribution of \(X_n\) actually does settle down to a limiting distribution.

Definition 18.4 (Limiting distribution)

The vector \(\pi\) is called a limiting distribution of the Markov chain if it has entries \((\pi_j \; : \; j \in S)\) such that

  1. \(\pi_j \geq 0\) for all \(j\)

  2. \(\sum_j \pi_j = 1\)

  3. \(\pi_j = \lim_{n \to \infty} T^n(i,j)\) for all \(i,j\),

where \(T\) is the transition density of the Markov chain.

This definition is equivalent to the matrix equality

(18.15)#\[ \pi = \lim_{n \to \infty} \alpha T^n, \]

where \(\alpha\) is any intial distribution.

By the uniqueness of limits, the existence of a limiting distribution will imply that it is unique.

Assuming that \(\pi\) is a limiting distribution of a chain, then it is also a stationary distribution (also known as equilibrium distribution).

Definition 18.5 (Stationary distribution)

The vector \(\pi\) is called a stationary distribution of the Markov chain if it has entries \((\pi_j \; : \; j \in S)\) such that

  1. \(\pi_j \geq 0\) for all \(j\)

  2. \(\sum_j \pi_j = 1\)

  3. \(\pi_j = \sum_i \pi_i T(i,j)\) for all \(j\),

where \(T\) is the transition density of the Markov chain.

The last equality can be written on matrix form as

(18.16)#\[ \pi = \pi T \]

and can be seen as an eigenvalue equation (with eigenvalue 1) where \(\pi\) is a left eigenvector.

A limiting distribution \(\pi\) is also a stationary one. According to Eq. (18.16) we just need to show that \(\pi T = \pi\). See Exercise 18.12 to complete the proof.

This implies that the random variable \(X_n\) will be distributed according to \(\pi\) for large enough \(n\) and that it will be stationary as time passes.

The extra, required properties for such a limiting distribution to occur are

irreducibility

all states communicate with each other which basically implies that all parts of the state space can be reached regardless of starting position;

and that all states are

positively recurrent

the probability of eventually returning to position \(i\), having started from \(i\), is 1 for all \(i\).

In addition, with the additional property of

aperiodicity

the recurrence of any position \(i\) does not follow a simple periodic pattern;

it can be shown that the stationary Markov chain will reach its unique limiting distribution regardless of starting point. This is the so called limit theorem. Henceforth we will only deal with irreducible, positively recurrent, aperiodic chains unless otherwise indicated.

Example 18.5 (Stationary distribution of “A simple Markov process”)

Let us consider again the Markov process from Example 18.4. We could see in Fig. 18.4 that there was some remnant memory of \(x_0\) after two steps. However, according to the discussion above, this memory should eventually disappear and we will be left with the stationary (or equilibrium) distribution. This is clearly seen in Fig. 18.5.

../../_images/c51563d9a839eb7a841ee55aa3451235845a1e9faa0b12adb1966589573de7a3.png

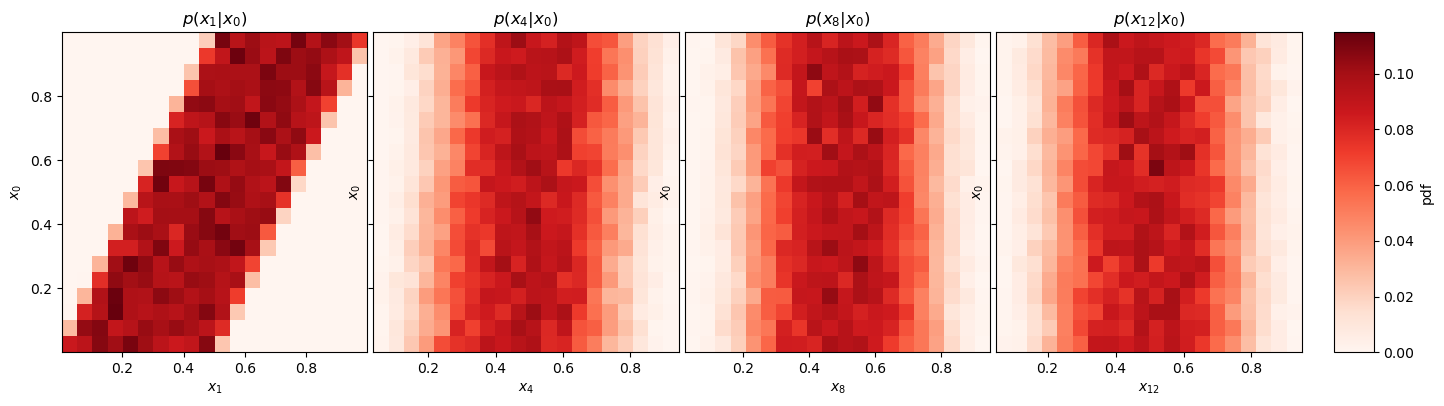

Fig. 18.5 The appearance of a limiting distribution already after \(\approx\) 8–12 iterations.#

Hide code cell content


fig_XmgivenX0,_,_,_,_ = example.plot_conditional_distributions([1,4,8,12],bins=20)
glue("XmgivenX0_fig", fig_XmgivenX0, display=False)
../../_images/c51563d9a839eb7a841ee55aa3451235845a1e9faa0b12adb1966589573de7a3.png

For practical purposes there are two issues to deal with:

  • There is no way to know in advance how big \(n\) needs to be to reach equilibrium.

  • Given a stationary Markov chain, we can generate samples from its equilibrium distribution; but how do we construct a chain to sample a specific distribution?

The latter problem is actually an example of an inverse problem. These are in general very difficult to solve. However, in this case there is a very clever, general class of solutions that we will look at in the next chapter.

Exercise 18.8 (Stationary distribution)

Show that Definition 18.5 implies that there is a stationary distribution \(\pi\) such that \(\prob \left( X_{n}=i \right) = \prob \left( X_{n-1}=i \right) = \pi_i\)

Reversibility#

Another important property that some Markov chains can have is reversability. This property can also be seen as an invariance under reversal of time. Let us consider \(X\), an irreducible, positive recurrent Markov chain of length \(N\), \(\{ X_N \, : \, 0 \leq n \leq N \}\), with transition matrix \(T_X\) and stationary distribution \(\boldsymbol{\pi}\). Suppose further that \(X_0\) has the distribution \(\boldsymbol{\pi}\) such that all \(X_n\) also have the same distribution.

Define the reversed chain \(Y\) with elements \(Y_n = X_{N-n}\). One can show that this sequence will also be a Markov chain, and that its transition matrix \(T_Y\) will be given by

(18.17)#\[ T_Y(i,j) = \prob_{Y_{n+1 \vert Y_n}}(j \vert i) = \frac{\pi_j}{\pi_i} T_X(j,i). \]

The chain \(Y\) is called the time-reversal of \(X\), and we say that \(X\) is reversible if \(T_X = T_Y\).

Considering a reversible chain with transition density \(T\) and stationary distribution \(\boldsymbol{\pi}\), the property of reversibility can be formulated as a detailed balance

(18.18)#\[ \pi_i T(i,j) = \pi_j T(j,i), \]

for all \(j,i\) in \(S\).

Exercise 18.9 (Reversibility)

  • Are all stationary chains reversible?

  • Are all reversible chains stationary?

Example 18.6 (A reversible Markov process)

We can construct a transition denisty that fulfills detailed balance by applying an update rule that is composed of a step proposal and an acceptance decision:

def update(self, random_state, history):
	propose = history[-1] + 0.5*(random_state.uniform()-0.5)
    if propose<0 or propose>1:
        return history[-1]
    else:
        return propose

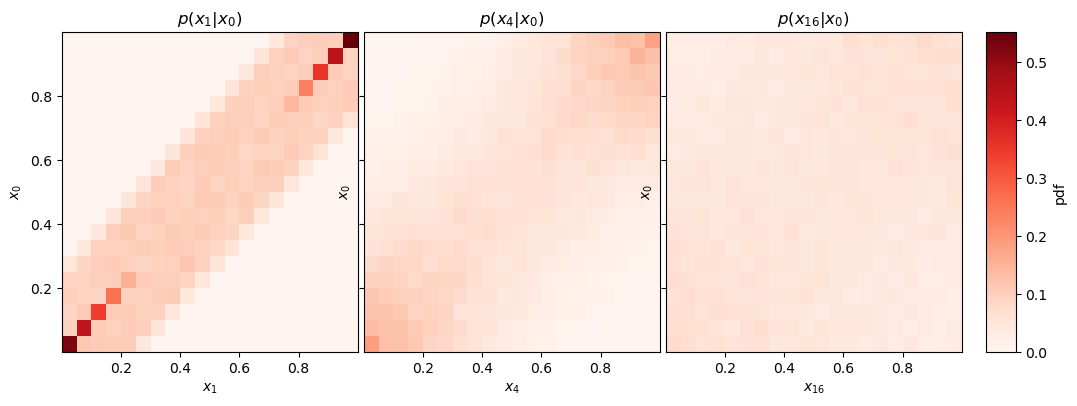

This family of transition densities will be discussed in more detail in the next chapter. For now, we just simulate the above chain and study a set of chains in Fig. 18.6 and a subset of conditional probabilities in Fig. 18.7 (produced with the script below). Some relevant questions are listed in Exercise 18.10.

../../_images/57eb54a5d52dc2ede262574914285100f6c4d8a6bf91bc1651109006b8fdda11.png

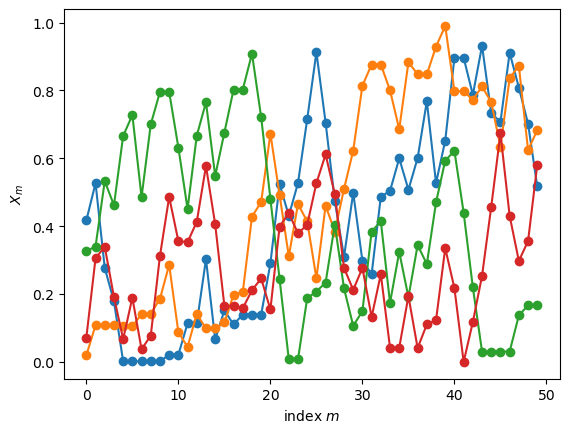

Fig. 18.6 Four chains produced with the reversible Markov chain.#

../../_images/74b3c7f52e3d3e9a3a93a5f59387c5de7b675af346b498ce860ffa85aae67667.png

Fig. 18.7 Conditional probabilities for the reversible Markov chain. See the caption of Fig. 18.4 for explanations how to interpret these plots.#

Hide code cell content


class ReversibleMarkovProcessExample(SP):
    def start(self,random_state):
        return random_state.uniform()

    def update(self, random_state, history):
        propose = history[-1] + 0.5*(random_state.uniform()-0.5)
        if propose<0 or propose>1:
            return history[-1]
        else:
            return propose

example_reversible = ReversibleMarkovProcessExample(seed=1)

example_reversible.create_multiple_processes(50,4)
fig_runs_reversible, ax = example_reversible.plot_processes()
glue("ReversibleMarkovProcessExample_runs_fig", fig_runs_reversible, display=False)

example_reversible.create_multiple_processes(17,40000)
fig_cprob_reversible,_,_,_,_ = example_reversible.plot_conditional_distributions([1,4,16],bins=20)
glue("ReversibleMarkovProcessExample_cprob_fig", fig_cprob_reversible, display=False)
../../_images/57eb54a5d52dc2ede262574914285100f6c4d8a6bf91bc1651109006b8fdda11.png ../../_images/74b3c7f52e3d3e9a3a93a5f59387c5de7b675af346b498ce860ffa85aae67667.png

Exercise 18.10 (A reversible Markov chain)

Consider Fig. 18.7.

  • Where is the transition density reflected in this plot?

  • Is this a reversible Markov chain?

  • Can you guess what is the equilibrium distribution?

Metropolis design#

A Markov chain that reaches an equilibrium with a stationary distribution \(\pi\) will have all subsequent outcomes distributed according to \(\pi\). Here we consider discrete chains with a discrete sample space.

Sampling a distribution

Consider a sequence of outcomes \((i_0, i_1, i_2, \ldots)\) from a stationary Markov chain.

  1. The first outcome, \(i_0\), is in practice a sample from the initial probability distribution \(\pi^{(0)}\). Note that \(\pi^{(0)}_i = \prob_{X_0}(i)\).

  2. The second outcome, \(i_1\), is a sample from \(\pi^{(1)} = \pi^{(0)} T\). In practice, since we have the first outcome \(i_0\), we obtain this second outcome as a sample from the conditional distribution for \(X_1\) given \(X_0\), i.e., a distribution with elements \(\prob_{X_1 \vert X_0}(i \vert i_0) = T(i_0, i)\).

  3. Continuing the process of drawing samples from conditional distributions we find that the \(n\):th outcome \(i_n\) is a sample from \(\pi^{(n)} \pi^{(0)} T^n\), but in practice we obtain it as a draw from \(\prob_{X_n \vert X_{n-1}}(i \vert i_{n-1}) = T(i_{n-1}, i)\).

Dismissing the first \(n\) outcomes, for which we have not yet reached equilibrium, we have the sequence \((i_{n+1}, i_{n+2}, \ldots)\). These are, respectively, samples from \(\pi^{(n+1)}, \pi^{(n+2)}, \ldots\). Assuming that the Markov chain has reached equilibrium, then all of these distributions are in fact the same. Therefore, our sequence of outcomes after equilibration are samples from the same distribution \(\pi\).

Now we would like to design a stationary Markov chain, via its transition matrix \(T\), such that it has a desired probability distribution \(\pi\) as its limiting distribution. Let us first recapitulate some important facts concerning Markov chains.

  1. A stationary Markov chain is guaranteed to have a limiting distribution when the transition matrix \(T\) fulfills certain conditions (irreducibility, etc).

  2. A limiting distribution \(\pi\) is also a stationary distribution: \(\pi = \pi T\).

  3. A distribution \(\pi\) that fulfills detailed balance, \(\pi_i T(i,j) = \pi_j T(j,i)\), is guaranteed to be a stationary distribution.

We utilize these facts in the so called Metropolis design of a Markov chain.

Remark 18.1 (The Metropolis design for obtaining a discrete limiting distribution)

We want to design a stationary Markov chain that has a desired distribution \(\pi\) as its limiting distribution. To achieve this, we construct the transition matrix in a product form. Its non-diagonal elements are

(18.19)#\[\begin{equation} T(i,j) = A(i,j) S(i,j), \quad \text{for } i \neq j, \end{equation}\]

where \(S\) is a (discrete) step proposal matrix and \(A\) contains acceptance probabilities. Formally, the elements of these matrices should be interpreted as probabilities

(18.20)#\[\begin{align} S(i,j) &= \cprob{\text{proposing next position } j}{\text{current position is } i}, \\ A(i,j) &= \cprob{\text{accepting new position } j}{\text{current position is } i}, \end{align}\]

where we think of outcomes of subsequent random variables as positions in the sample space. Note how the probability of a transition from \(i\) to \(j\), given by \(T(i,j)\), is then the product of these two independent (proposal and acceptance) probabilities.

Constraining \(T\) to fulfill detailed balance (18.18) we can guarantee that \(\pi\) is a stationary distribution. That is, we require

(18.21)#\[\begin{equation} \pi_i S(i,j) A(i,j) = \pi_j S(j,i) A(j,i). \end{equation}\]

This condition is fulfilled for any stochastic matrix \(S\) (impying non-negative entries and row sums equal to one) if one sets the acceptance probability

(18.22)#\[\begin{equation} A(i,j) = \min\left(1, \frac{\pi_j}{\pi_i}\frac{S(j,i)}{S(i,j)} \right), \end{equation}\]

where the second argument to the min-function is known as the Metropolis ratio.

Finally, the diagonal entries of the transition matrix are

(18.23)#\[\begin{equation} T(i,i) = S(i,i) + \sum_{j \neq i} S(i,j) \left( 1 - A(i,j)\right), \end{equation}\]

which can be understood by the fact that transitions to the same position can be triggered by a proposed move (the first term; note that \(A(i,i)=1\)), or by a non-accepted, proposed move to any other position (the sum in the second term).

Different choices of \(S\) can be considered. As long as the chain is irreducible, positively recurrent, and aperiodic then it is guaranteed that \(\pi\) is a limiting distribution.

See Exercise 18.21 for an explicit example.

Exercises#

Exercise 18.11 (Stationary two-state distribution)

Find the stationary distribution to the Markov chain with transition matrix

\[\begin{split} T = \left[ \begin{array}{cc} 1-p & p \\ q & 1-q \\ \end{array} \right]. \end{split}\]

Exercise 18.12 (Limiting distribution)

(i) Assume that \(\pi\) is a limiting distribution of a Markov chain. Show that \(\pi\) is also stationary distribution.

(ii) Show by providing a counterexample that the converse of the above is not true.

Exercise 18.13 (Flip-flop)

Construct a transition matrix for a two-state system that will always flip state 1 \(\leftrightarrow\) state 2.

  • Does it have one or several stationary distributions?

  • Is there a limiting distribution?

Exercise 18.14 (Gothenburg winter weather)

The winter weather in Gothenburg consists mostly of rain plus the occasional days of snow and clear skies. We might describe this winter weather as a Markov chain in which the conditional probabilities for tomorrow’s weather just depends on the weather today. Here is a realistic transition matrix for a Gothenburg winter weather chain

\[\begin{split} \begin{array}{ccc} & & \begin{array}{ccc} s\;\; & r & \;\; c \end{array} \\ T = & \begin{array}{c} s \\ r \\ c \end{array} & \begin{pmatrix} 0.2 & 0.6 & 0.2 \\ 0.1 & 0.8 & 0.1 \\ 0.1 & 0.6 & 0.3 \end{pmatrix} \end{array} \end{split}\]

  • What is the probability that it snows tomorrow given that it snows today?

  • What is the minimum probability that it will rain tomorrow no matter what the weather today?

  • Assume that the amount of precipitation is 2 mm if it snows, 5 mm if it rains, and 0 mm if the sky is clear. Given that the sky is clear today, what is the expected amount of precipitation tomorrow?

  • The meterologist predicts 50% probability that it will snow tomorrow and 50% probability that it will rain. Find the probability that it will rain two days later (that is in three days from today).

Exercise 18.15 (Stationary Gothenburg winter weather)

Find the stationary distribution of the Gothenburg winter weather Markov chain from Exercise 18.14.

Test numerically that it is also a limiting distribution.

Exercise 18.16 (Is it reversible?)

Determine if the Markov chain with transition matrix

\[\begin{split} T = \left[ \begin{array}{ccc} 0 & 2/5 & 3/5 \\ 1/2 & 1/4 & 1/4 \\ 1/2 & 1/6 & 1/3 \end{array} \right] \end{split}\]

is reversible.

Exercise 18.17 (Optical pumping)

In this exercise we will consider a simple quantum mechanical system that can be modeled using a Markov process.

Consider a quantum system that has three relevant energy levels labeled 1,2 and 3, see figure. We do not need to consider any quantum mechanics to solve this problem, but a few key properties are needed: An electron generally ‘‘wants’’ to be in the lowest possible energy state, and if it is excited to state 2 or 3 it will eventually decay to a state will lower energy within some time frame. The possible decays and their respective probabilities are also shown in the figure. However, by introducing an auxiliary driving mechanism, for example a laser, the electrons can transition from a lower energy level to a higher one. This is known as optical pumping and is depicted in the figure where electrons can go from state 1 to 3.

file

The probabilities are given by

\[ p_{31} = 1/3,\quad p_{13} = 1/3, \quad p_{21} = 2/3, \quad p_{32} = 1/3. \]

The time evolution of this system can be modeled as a Markov process with state \(\pi_n = (a_n^1,a_n^2,a_n^3)\) (at time \(t_n\)) which describes the distribution of the electrons among the three levels subject to the constraint \(\sum_i a_n^i = 1\). An example is \(\pi_n = (3/6,2/6,1/6)\) which describes that half of the particles are in the ground state, one third in the first excited state, and one sixth in the second excited state.

In our model the state will be updated at each time step (\(\Delta t\)) according to \(\pi_{n+1} = \pi_n T\), where \(T\) is a matrix of transition probabilities where \(T_{ij}\) gives the probability that an electron in state \(i\) goes to state \(j\).

We want to study the equilibrium distribution of electrons in this system, meaning that the state has evolved for a long time.

(i) Construct the transition matrix, \(T\) from the transition probabilities that are given in the figure.

(ii) Find the limiting distribution (if it exists).

(iii) Would a limiting distribution fulfill detailed balance? Why, why not?

(iv) (optional) Implement this process in the Python class StochasticProcess and simulate it for a few different starting configurations. Do you find the same limiting distribution as in the analytical calculation?

Exercise 18.18 (Detailed balance)

Prove Eq. (18.17) to show that a reversible Markov chain must fulfill detailed balance (18.18).

Solutions#

Contents
